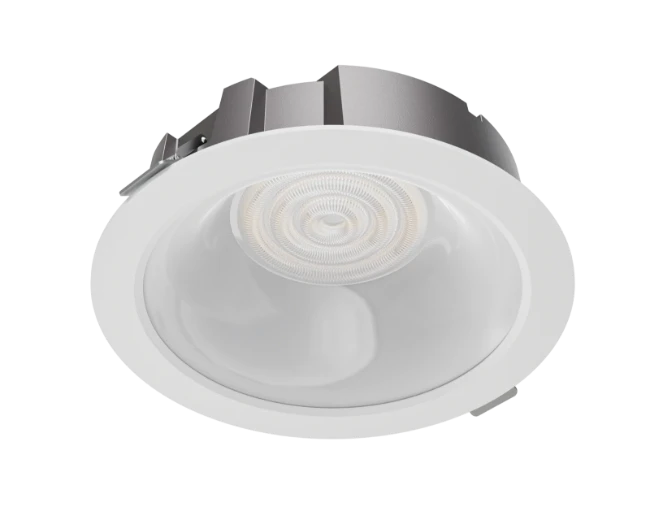

Downlight Performer G2 MW

LEDDownlightMW-P2 Rd200-22W-DALI-930/940

Product Code
540001385200
  • High quality LED Downlight with upgraded efficacy up to 130 lm/W with CRI90 for all versions
  • Integrated CCT switch for color selection (3000K-4000K)
  • Unique optical lens concept with matte white (MW) reflector and low glare
  • Direct replacement for compact fluorescent downlights
  • IP54 on light emitting side
  • Provided with protective foil in order to protect the optics against dust and dirt during the installation

Specifications Packaging Accessoires

Electrical data

Nominal voltage 220|240 V
Voltage type AC/DC
Power factor 0.9
Max. system power 22 W
Max. inrush current 5.25 A
Inrush time 47.24
Displacement factor (DF) ≥ 0.9
Max. number of luminaires per miniature circuit breaker B16 (MCB) 37
Max. number of luminaires per miniature circuit breaker C16 (MCB) 37
Max. number of luminaires per miniature circuit breaker C10 (MCB) 23
Max. number of luminaires per miniature circuit breaker C13 (MCB) 30
Frequency 50|60 Hz
Nominal voltage DC 180|280 V

Photometrical data

Colour temperature 3000|4000 K
Lumen 2860 lm
Equivalent to CFL 2x26W
Colour consistency (SDCM) 4
Colour rendering index (CRI) > 90
Luminaire efficacy 130 lm/W
CIE Flux Code 75 96 100 100 100

Light technical data

Beam angle 70°
UGR 22

Lifespan

Lifetime (L70) 100000 h
Lifetime (L80) 70000 h
On-/Off-cycles 100000

Capabilities

Dimmability DALI2

Certificates and standards

Degree of protection (IP) IP54
Protection class II
Impact strength IK02
Glow wire test 650°C
IP recessed part IP20
Risk group (EN 62471) RG0 / RG1 (22W & 30W & 40W)
Type of control gear LED operating device current-controlled
With control gear Yes
Driver failure rate (at 5,000 hrs) 1%
Input current 105 A
Reflector Matt
Housing colour White
Optical material Polycarbonate
Finishing White RAL9003
Width 226 mm
Length 226 mm
Height/depth 62 mm
Outer diameter 226 mm
Application temperature 25°C
Storage environment -25|50°C
Operating temperature -10|45°C
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
694149174742294051190CT10.229 x 0.246 x 0.075 m0.92 KG
LEDDownlight-P-Surface-Module-Rd200


Accessory Downlights - Surface Module Rd200 - White

Product Code
540098018400
Surface mounted housing
LEDPanelRC-Sl U19 EM-kit 1h


Accessory Panels - Emergency kit 1 Hour

Product Code
542098000800
LEDPanelRC-Sl U19 EM-kit 3h


Accessory Panels - Emergency kit 3 hours

Product Code
542098000900
Junction-Box-WH


Accessory Indoor - Junction box - White

Product Code
542098030700
Coupler/connector straight
LEDDownlightRc-P-Sl-E-Adapter-200-225


Accessory Downlights - Adapter ring 200mm-225mm - White

Product Code
140060647
Adapter
LEDDownlightRc-P-Sl-E-Adapter-200-250


Accessory Downlights - Adapter ring 200mm-250mm - White

Product Code
140060648
Adapter
